PSAL®- S NITROGEN GENERATOR FOR LASER CUTTING
NITROGEN PRODUCTION DIRECTLY ON-SITE WITH N2 PURITIES OF UP TO 99.999%
AIRCO® Group has been very successful in offering both space-saving and effective and convenient complete solutions for onsite nitrogen generation. The so-called “PSAL® S - systems” combine modern platform construction with years of experience in the field of high-purity
nitrogen generation.
Read more

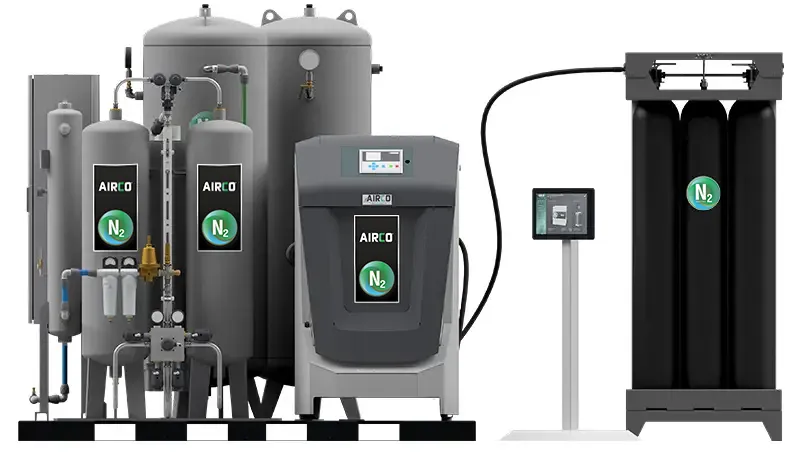

The system, including all components, is assembled on the prefabricated modular skids at our production site in the Rhine / Main region. Compressed air preparation, nitrogen generator, product container, nitrogen drying, filter and the high-pressure compressor find space on the always identical basic structure.
After completion of the installation, the entire system is approved by our technology and our notified CE body and the installation is then retracted. The systems are extensively tested for function and tightness. The settings can already be adapted to the specifications of our customers.
In this way, we enable commissioning at the customer’s site in record time and realize the basic idea of the Plug & Play application. The loading and positioning, in which no more than one forklift is required, is also characterized by the compact design.
Our nitrogen plant is professionally connected to the supply gases for the laser during installation by our trained technicians.
In the last step, our customers receive training directly at their plant by our technicians so that they can plan and monitor their nitrogen production themselves in the future.
Advantages of the nitrogen generator PSAL® - S
-
Plug and play
-
Immediately operational
-
Low maintenance requirements
-
High quality and worldwide service
-
Air requirement factor 5 – 7
-
Purity at 10 – 1000 ppm, 5.0 – 3.0
Highlights of the nitrogen generator PSAL® - S
-
Small surface area requirement and simple operation
-
Industry 4.0: query and control of the system from any location in the world
Nitrogen generator Specifications of PSAL ® - S
Initial pressure: max. 300 bar
Ambient air: +10 °C to +45 °C
Nitrogen pressure dew point: up to -60 °C
Nitrogen purity: 3.0 = 1000 ppm
Maximum purity: 5.0 = 10 ppm
Nitrogen temperature: +10 °C above ambient temperature
| Skit-Platform | Volumetric flow - Nm³/h 3.0 (99,9%) / 4.0 (99,99%) / 5.0 (99,999%) | Platform dimensions (LxWxH in mm) | Platform weight (approx. in kg) | Total weight (approx. in kg) | Power connection | Bundle (recommendation) | |||
|---|---|---|---|---|---|---|---|---|---|
| PSAL® 15 S | 12,6 | 6,3 | 3,2 | 2200 x 2200 x 2500 | 1950 | 1950 | 32A | 1 | |
| PSAL® 25 S | 23,2 | 11,7 | 5,8 | 2200 x 2200 x 2500 | 1700 | * | 2180 | 50A | 2 |
| PSAL® 38 S | 37,6 | 23,6 | 10,7 | 2200 x 2200 x 2500 | 1850 | * | 2330 | 50A | 4 |
| PSAL® 50 S | 48,2 | 27,9 | 14,2 | 2200 x 2200 x 2500 | 1934 | * | 2414 | 50A | 6 |
| PSAL® 75 S | 71,9 | 41,8 | 21,3 | 2200 x 2200 x 2500 | 2087 | * | 2567 | 63A | 8 |
| PSAL® 90 S | 86,0 | 50,5 | 26,5 | 2200 x 2200 x 2500 | 2593 | * | 3073 | 63A | 8 |
