INFINIT DLS 11-45 S COMPRESSED AIR STATION
DISCOVER OUR POWERFUL & COMPACT PLATFORM-BASED COMPRESSED AIR STATION

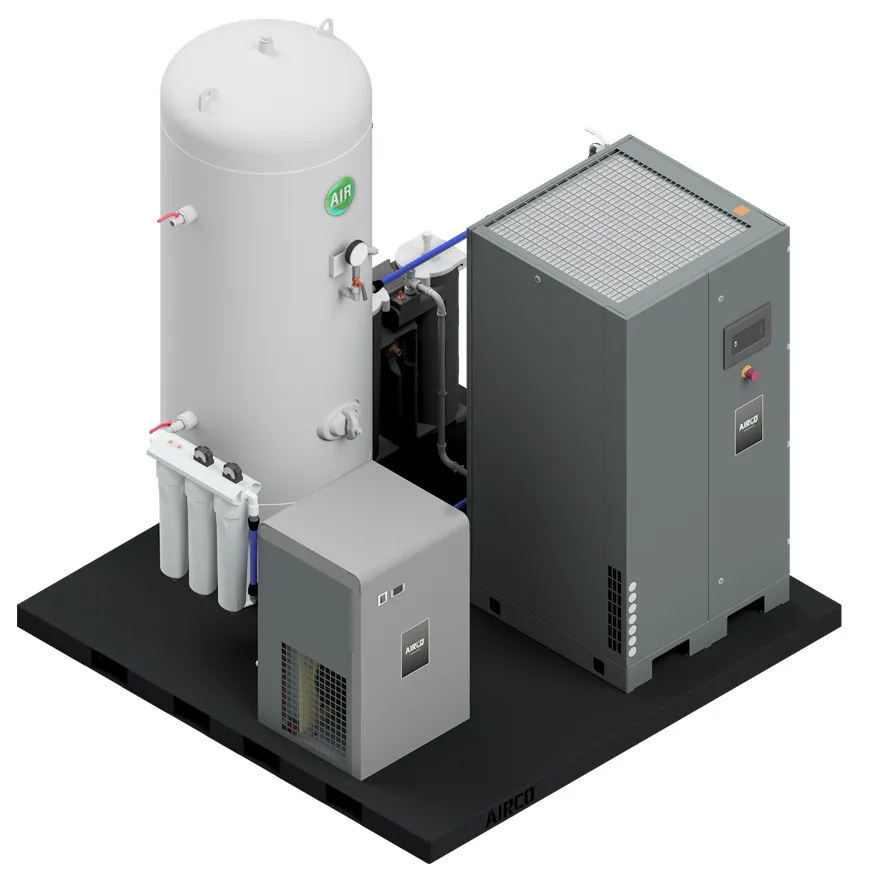

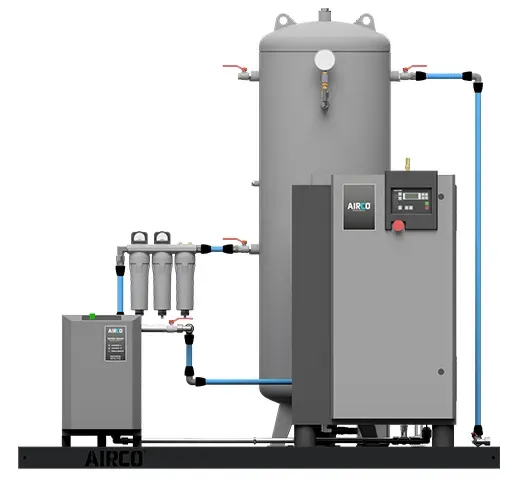

AIRCO® Group offers you a complete and powerful platform-based compressed air station with efficient and speed-controlled compressor, refrigeration dryer, container and filtration unit.
Advantages of the DLS 11-45 S compressed air station
-
Plug and play
-
Operational immediately
-
Low maintenance requirements
-
Worldwide service
Highlights of the DLS 11-45 S compressed air station
-
Small surface area requirement and simple operation
-
Extremely low power consumption
-
CE approved and certified
COMPRESSED AIR QUALITY PER DIN ISO 8573-1 1.4.3
Class 1: Particles
Class 4: Water (corresponds to a pressure dew point of +3 °C) refrigeration dryer designed for an ambient temperature of up to +45 °C
Class 3: Residual oil
| Skit-Plattform | Volumetric flow bei 9,5 bar | Platform dimensions (LxWxH in mm) | Platform weight (Approx. kg) | Power connection |
|---|---|---|---|---|
| DLS 11 S | 0,42 - 1,63 m³/min. | 2200x2200x2200 | 890 | 25A |
| DLS 15 S | 0,41 - 2,13 m³/min. | 2200x2200x2200 | 820 | 32A |
| DLS 18 S | 1,03 - 3,22 m³/min. | 2200x2200x2200 | 1000 | 50A |
| DLS 26 S | 1,02 - 4,70 m³/min. | 2200x2200x2200 | 1080 | 63A |
| DLS 37 S | 1,03 - 6,14 m³/min. | 2200x2200x2200 | 1120 | 100A |
| DLS 45 S | 1,49 - 8,23 m³/min. | 2200x2200x2200 | 1620 | 125A |
OFFER – QUERY – ADVICE ON INFINIT DLS 11-45 S Compressed air station
Are you interested in a nitrogen system or the product: INFINIT DLS 11-45 S Compressed air station ? Do you have a query, would like to receive an offer or do you require a consultation? Contact our sales team easily and conveniently or we will be happy to call you back.
